Full automatic urine bag machine

This machine is special design for the urine bag production:

It has small full automatic and big full automatic, small full automatic one time just make one bag, big full automatic one time can make 2 bags.It just need one worker watch it.It's full automatic machine which including printing( can be made customized), welding both inlet and outlet tubes, welding the reflow film(NRV),welding the body body, cutting etc.

Machine parameters:

Model	RJ-HF8PLD4-2Z
H.F Output	16KW
Input Power	30KVA
Frequency	27.12MHZ
Voltage	50/60HZ   AC380V
Rectifier	Silicon diode
Electron tube	E3185RB/7T69RB( Toshiba)
Anti-spark tube	NL-5557
Press way	Pneumatic
Air Pressure	6kg/cm2
Guide Pillar	Four pcs
Max. Pressure	200kg
The trachea interface	OD:12mm ID:8mm
Water Connections	OD:12mm ID:8mm
Feeding mode	Servo motor
Max. feeding trip	400mm
Gap of electrode	100mm
Working trip	100mm
Upper board	300×420mm
Working plate	300×420mm
Capacity	800-900 pcs/hour
Dimension	12000×5000×2100mm
Weigth	9000kg
Note: all technology has applied for patents, counterfeit will investigate!

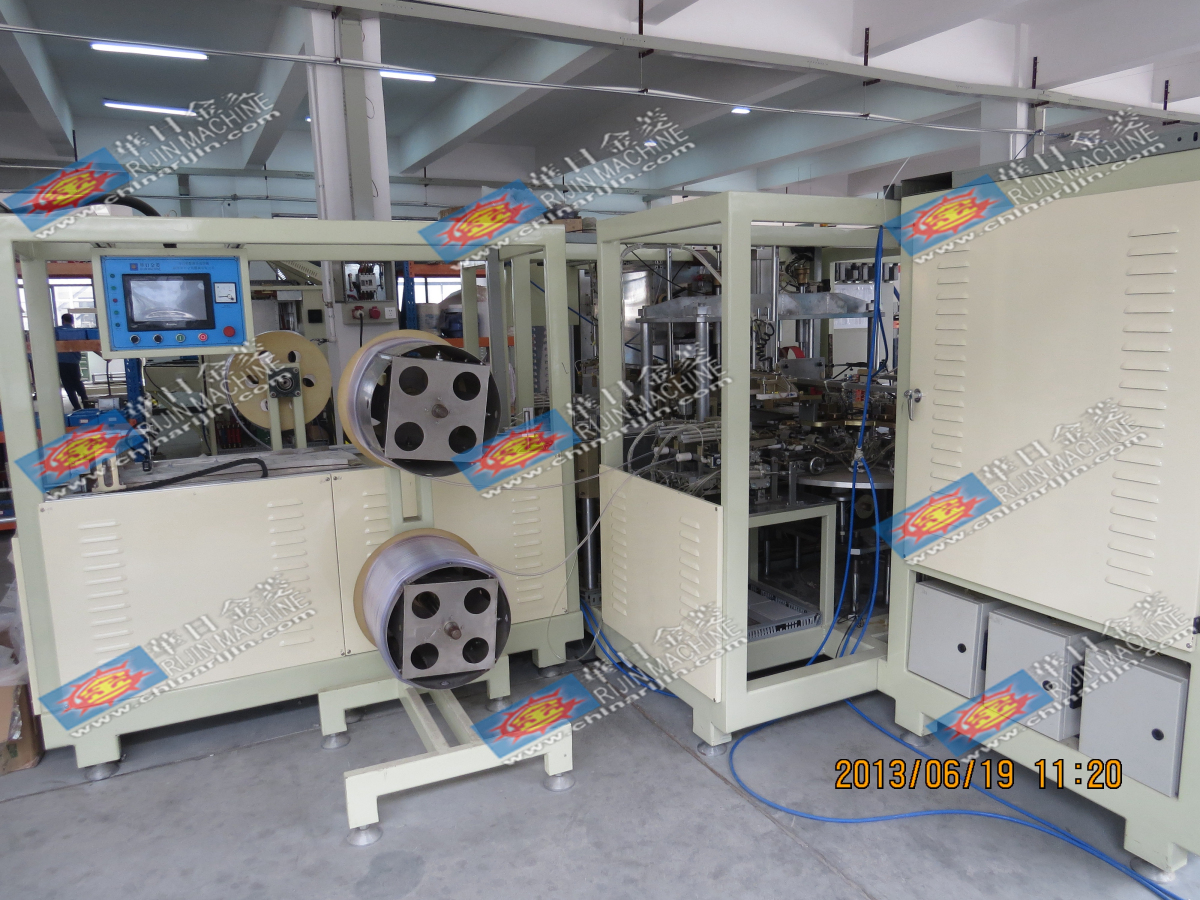

Machine structure:

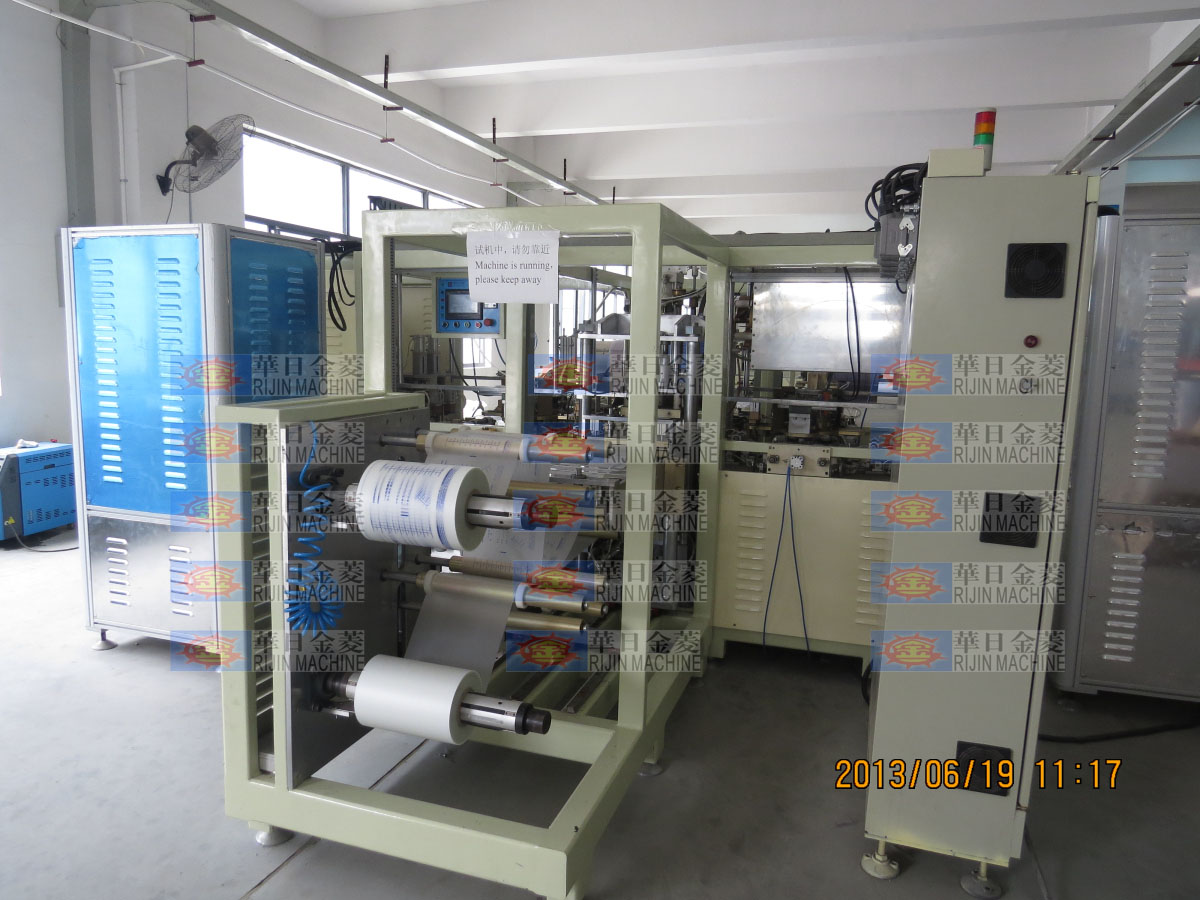

1.Machine has one feeding system, with two Inflatable shafts.
2.With two vibration plate, automatic sorting and installing     tube
3.NRV forming system, auto feeding and welding.
4.Inlet tube turntable, auto install inlet tube.
5.Outlet turntable, auto install outlet tube.
6.Auto welding the tube and body.
7.Cutting system
8.Auto stack system

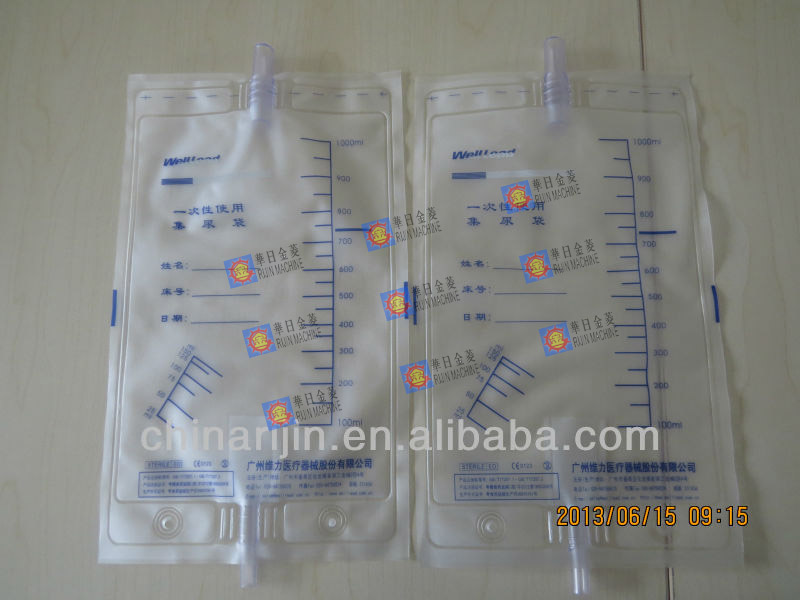

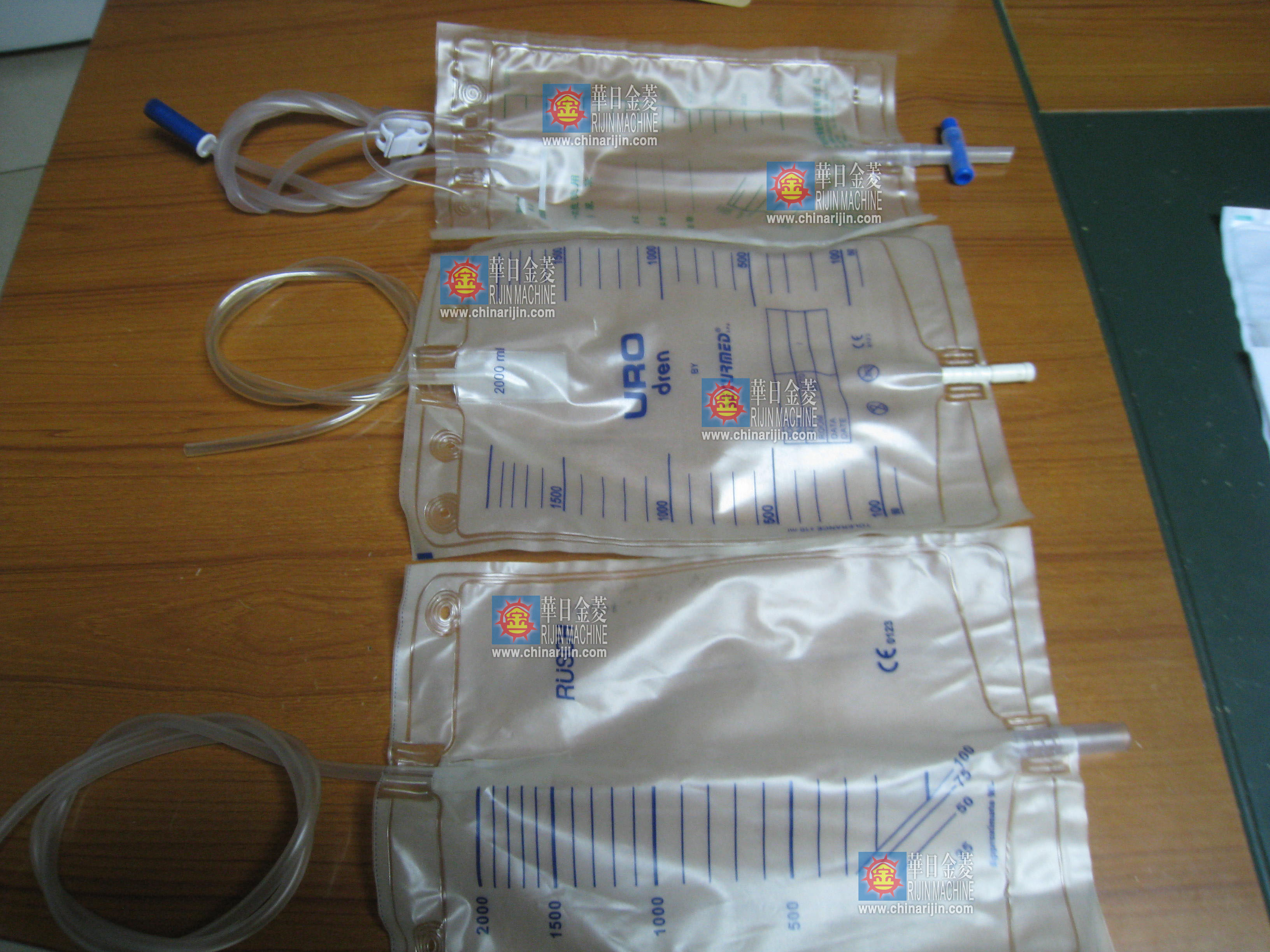

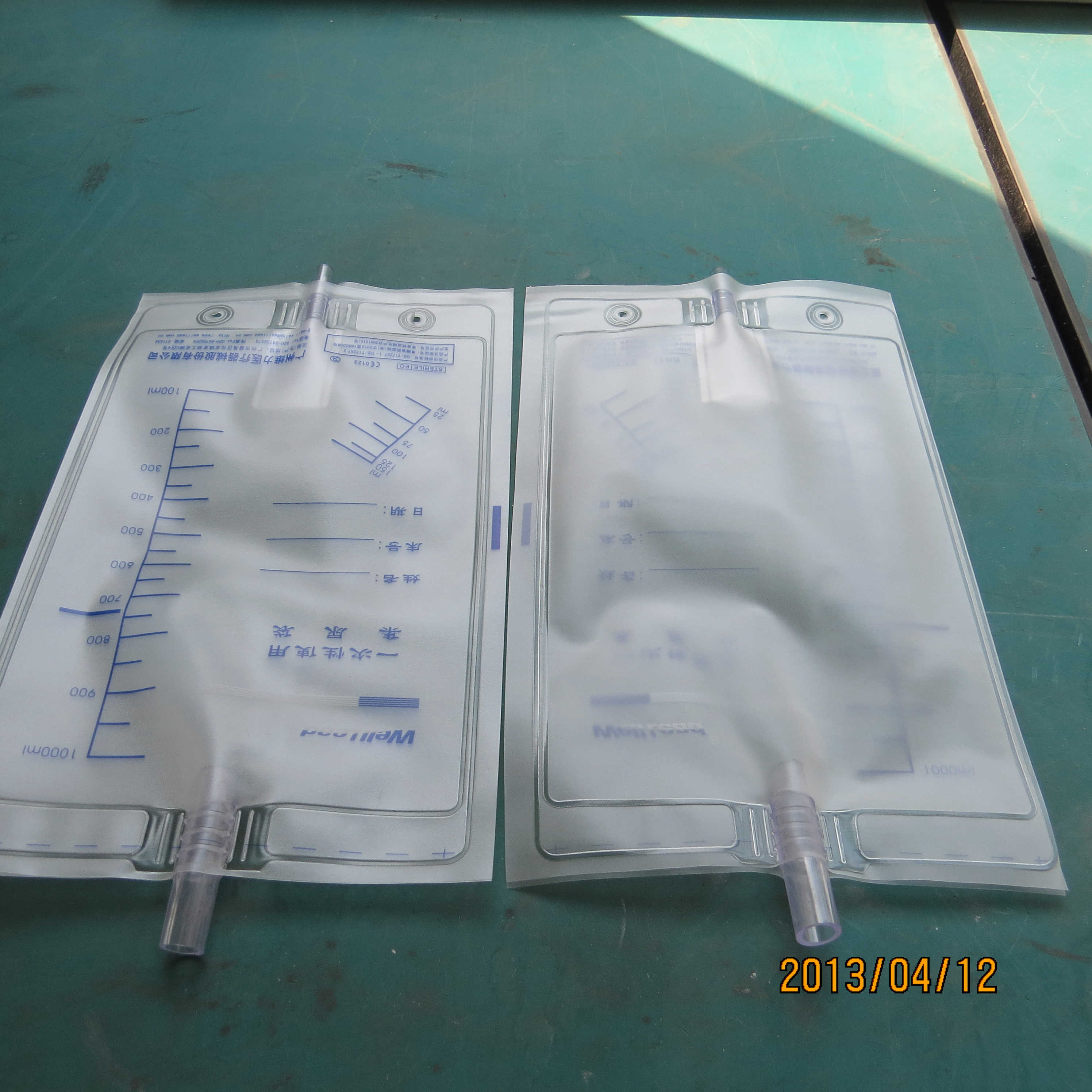

It finishes the products as following: inlet short tube, outlet short tube, NRV, body welding, cutting.
