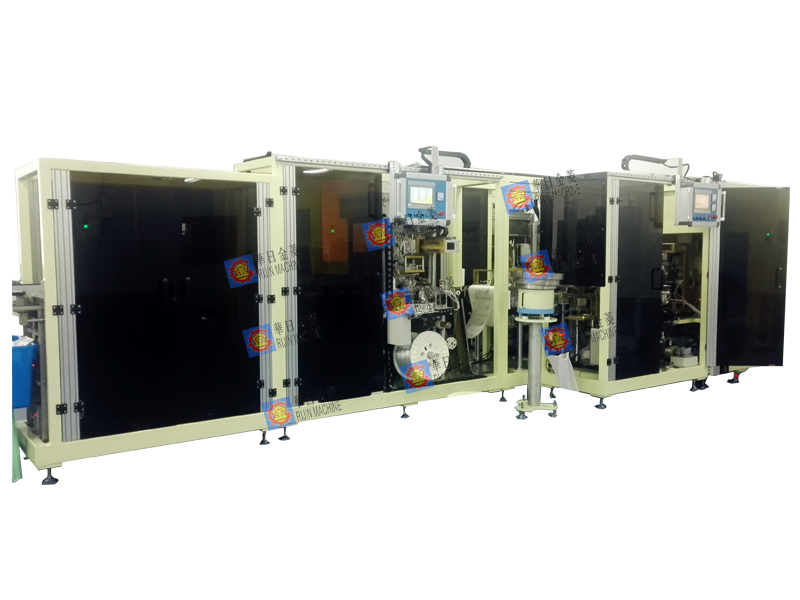

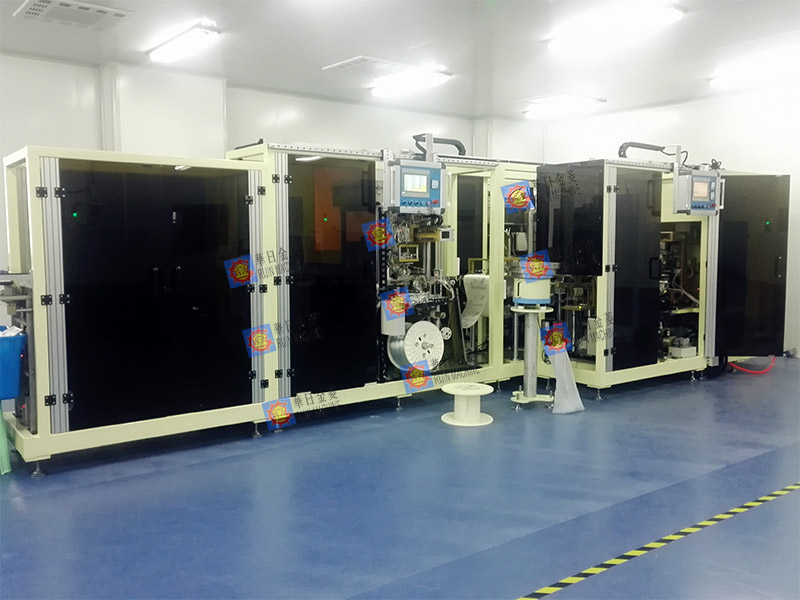

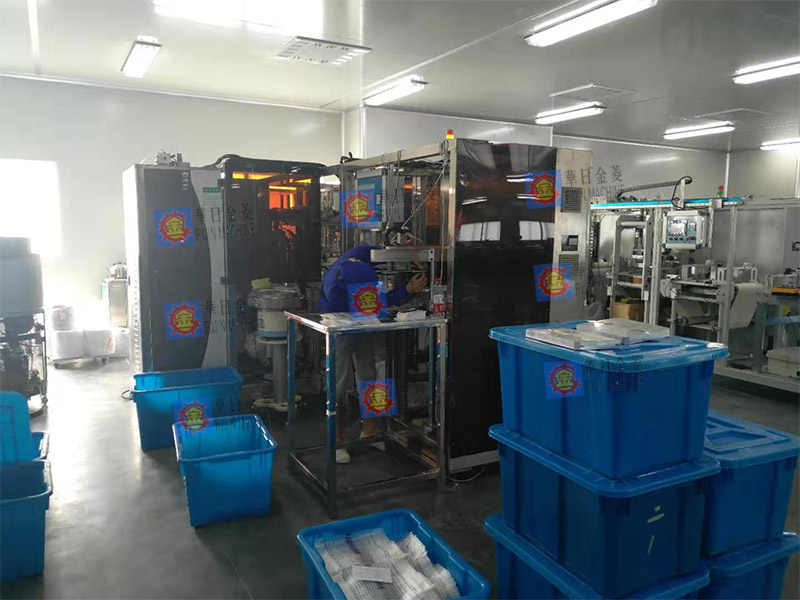

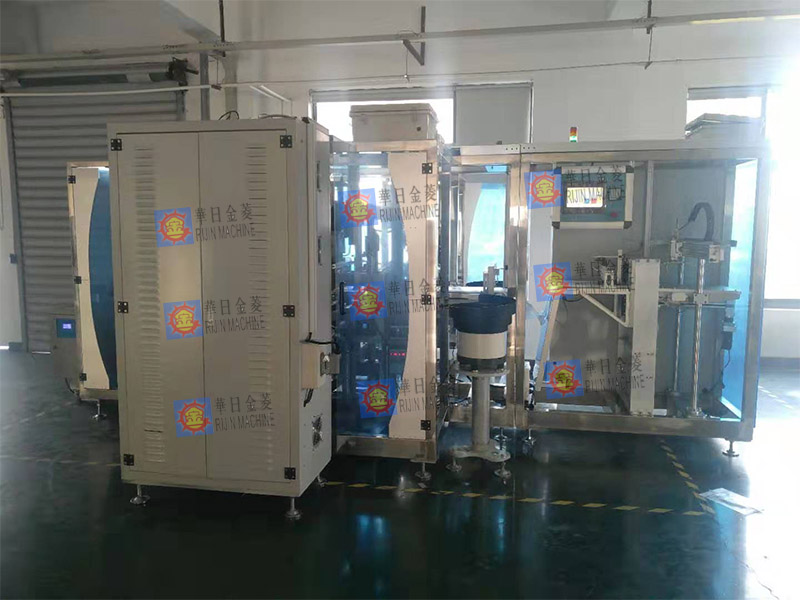

Small full automatic urine bag machine
It's special design for urine bag production:
The machine speed is about 400-500pcs/hour, just need one worker to operate it. Machine dimension is:7500*2800*2000mm, the weight about 3500kg.
Inlet and outlet tubes can be welded and also NRV can welded. It’s full automatic machines which including welding both tubes, welding the reflow film(NRV), welding the bag body, cutting etc.
|
|
Parameters:
|
Model
|
RJ-HF8ND
|
|
H.F Output
|
11KW
|
|
Input Power
|
30KVA
|
|
Frequency
|
27.12MHZ
|
|
Voltage
|
50/60HZ AC380V
|
|
Rectifier
|
Silicon diode
|
|
Electron tube
|
E3185RB/7T69RB( Toshiba)
|
|
Anti-spark tube
|
NL-5557
|
|
Press way
|
Pneumatic
|
|
Air Pressure
|
6kg/cm2
|
|
Guide Pillar
|
Four pcs
|
|
Max. Pressure
|
200kg
|
|
The trachea interface
|
OD:12mm ID:8mm
|
|
Water Connections
|
OD:12mm ID:8mm
|
|
Feeding mode
|
Servo motor
|
|
Max. feeding trip
|
400mm
|
|
Gap of electrode
|
100mm
|
|
Working trip
|
100mm
|
|
Upper board
|
300×420mm
|
|
Working plate
|
300×420mm
|
|
Capacity
|
700-750 pcs/hour
|
|
Dimension
|
7500×2800×2000mm
|
|
Weigth
|
3500kg
|
Note: all technology has applied for patents, counterfeit will investigate!
|
|
Item
|
Name
|
Model
|
Brand
|
|
1
|
Cylinder
|
100X100
|
Taiwan AIRTAC
|
|
2
|
Solenoid valve
|
4V310-10
|
Taiwan AIRTAC
|
|
3
|
Oil-water separator
|
PF-2000
|
Taiwan AIRTAC
|
|
4
|
Air switch
|
40A
|
CHINT
|
|
5
|
A.C Contactor
|
JCIE0910M5N
|
SCHNEIDER
|
|
6
|
Relay module
|
SMD-N06-2Z
|
SHIMAIDE
|
|
7
|
shift knob
|
A22-2B-11
|
Muller
|
|
8
|
Diode
|
2DJ20KV2A
|
CECT
|
|
9
|
Electron tube
|
E3185RB/7T69RB
|
Toshiba
|
|
10
|
Transformer
|
4000w/8000W
|
RIJIN
|
|
11
|
H.F generator
|
4KW/8KW
|
RIJIN
|
|
12
|
Servo motor
|
ECMA-C20604S/ISD-B2-0421-B
|
Delta
|
|
13
|
Touch screen
|
7 inch
|
WEINVIEW
|
|
14
|
PLC
|
|
Delta
|
|
Machine structure:
1.Machine has one feeding system, with two Inflatable shafts.
2.With two vibration plate, automatic sorting and installing tube
3.NRV forming system, auto feeding and welding.
4.Inlet tube turntable, auto install inlet tube.
5.Outlet turntable, auto install outlet tube.
6.Auto welding the tube and body.
7.Cutting system
8.Auto stack system
It finishes the products as following: inlet short tube, outlet short tube, NRV, body welding, cutting.
