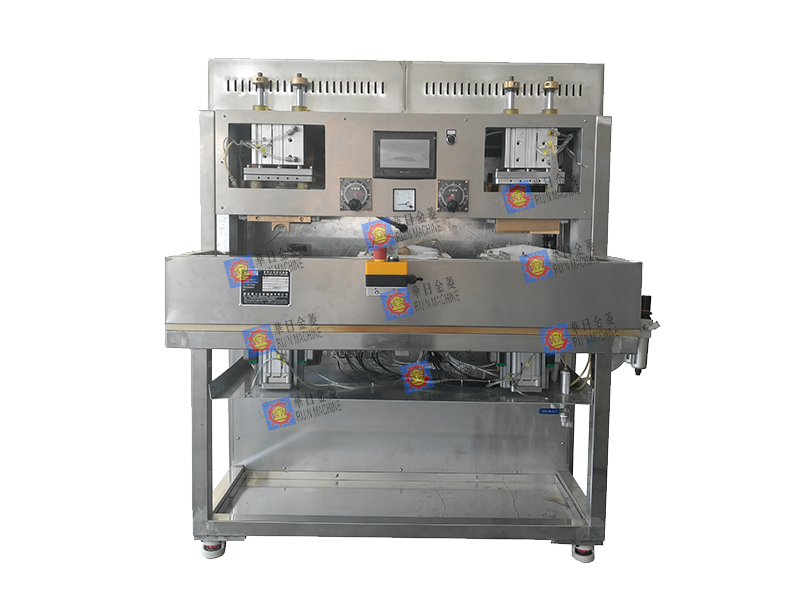

High frequency feeding bag bowel welding machine

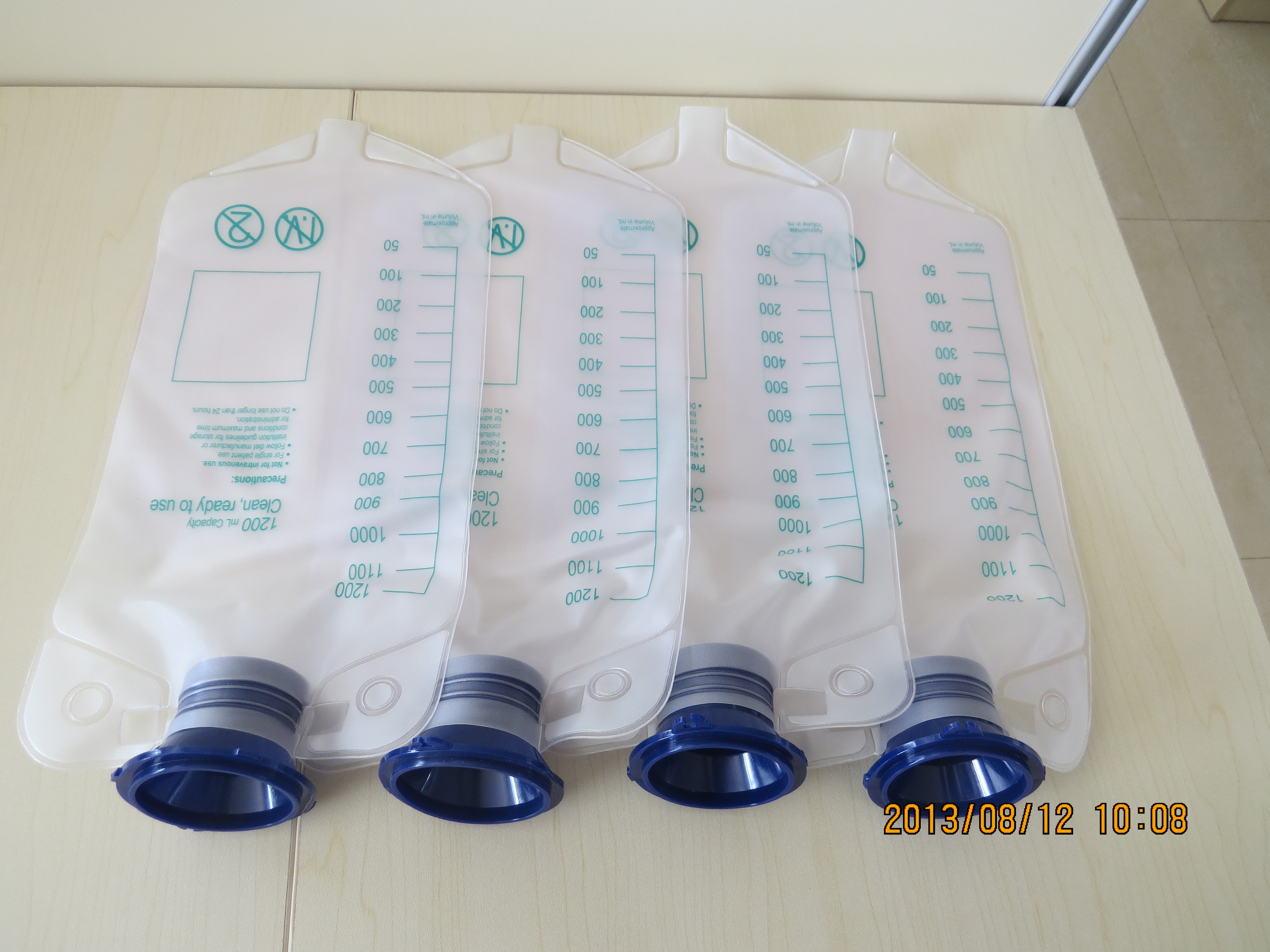

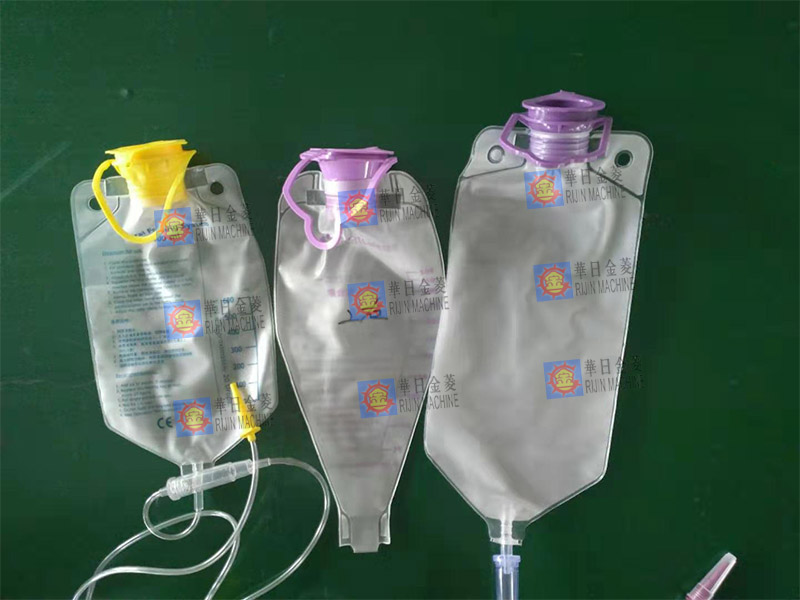

It's special design for welding the feeding bag bowel.

Main features:

1. Output power strong local oscillator frequency generated by the 27.12 MHZ and 40.68 MHZ, in line with international industry standard, all kinds of special electronic circuit control device, can avoid improper operation, and can the fastest time welding products, improve product yield.
2. High sensitive electronic fire protection device, when the spark occurs can be automatically cut off the circuit, high weeks to lower damage parts mould and object, when the current is too high, automatic cut off the high pressure to protect oscillation tubes and rectifier.
3. The latest generation of high Zhou Boji shield type design, low electromagnetic radiation, protect the personal safety, with the hand/auto, test, temperature control, pressure control, high weeks current regulation and other functions, covers an area of less, easy installation and maintenance;
4. PLC operating system, welding parameters such as time, melting time can be set up by PLC, 7 inch human-machine interface, display various parameters and output, speed, parameter adjustment, production within the micro computer screen set for production, when production to achieve automatic warning, convenient user count.
5. Feeding bowl bag welding machine using high-frequency heat sealing welding principle, welding, welding speed, welding indentation is beautiful, without fold;

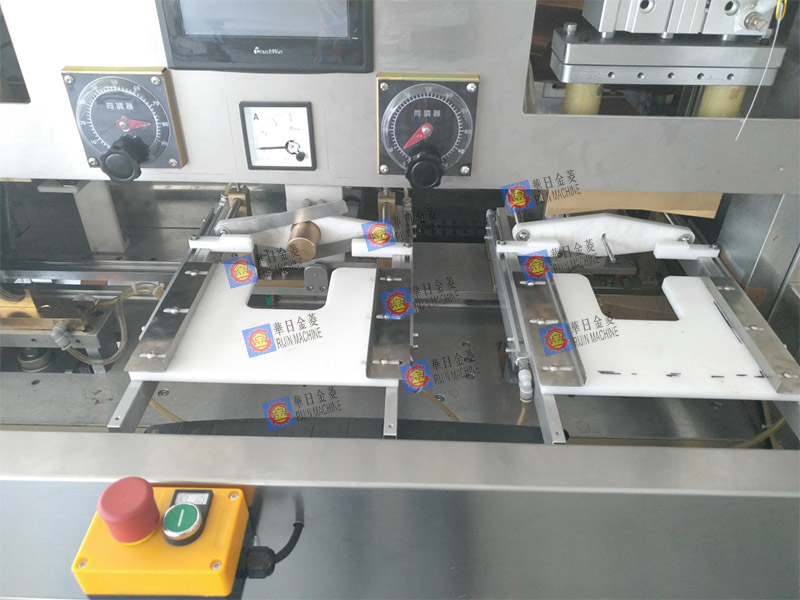

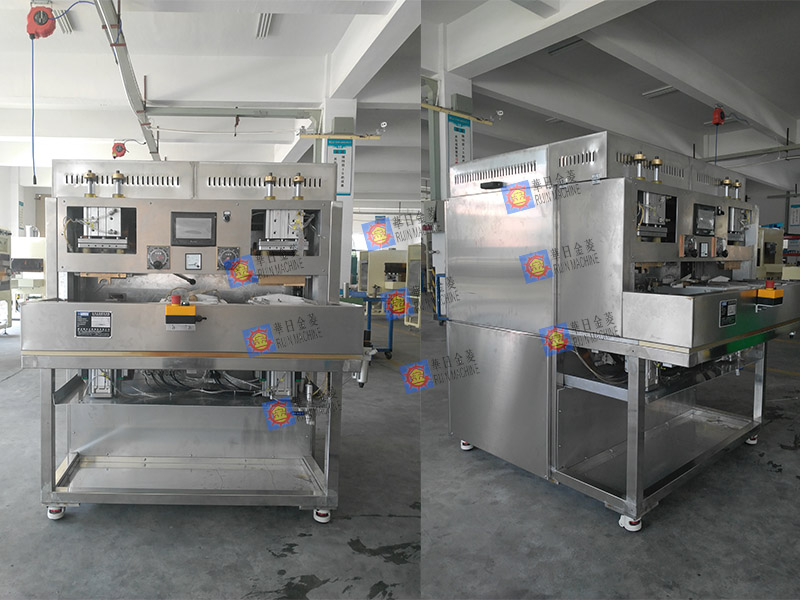

6. This machine is designed around two station;Stainless steel frame, conform to the requirements of the medical bag production dust-free workshop health level;
7. Bowl and the bag body can divide second welding forming can also be a welding forming;
8. Output per hour: 450;Applicable materials: EVA, PVC;
9. The key parts adopt imported, machine quality guaranteed.
