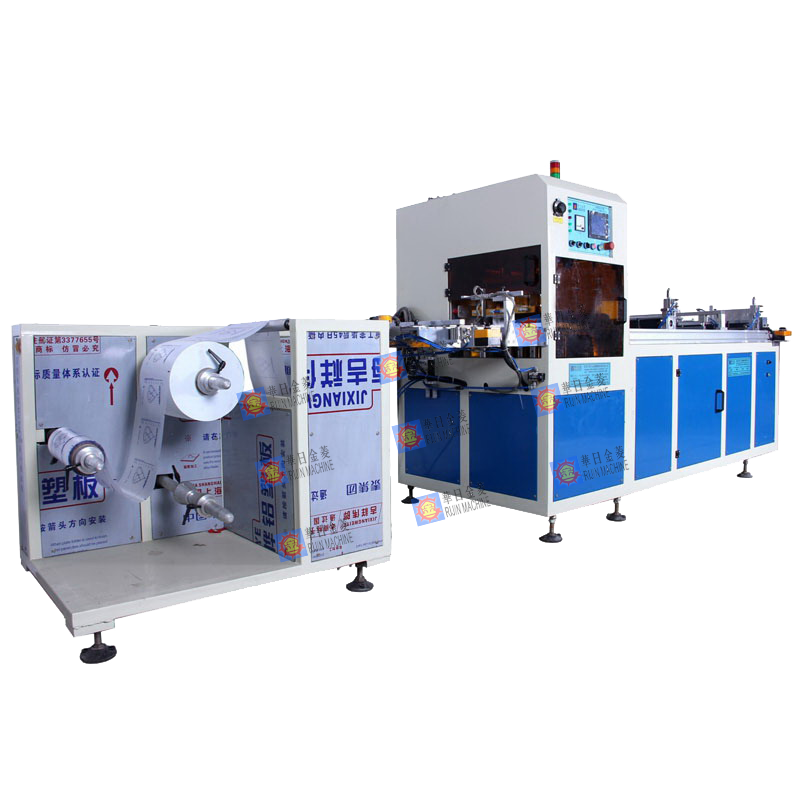

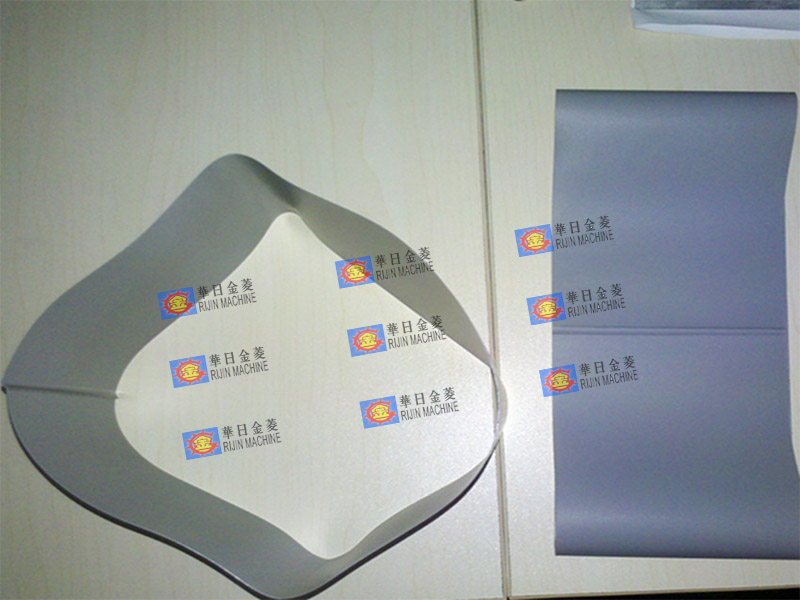

Mainly used for PVC/TPU air bed, air cushion, air pillow and other inflatable products welding.

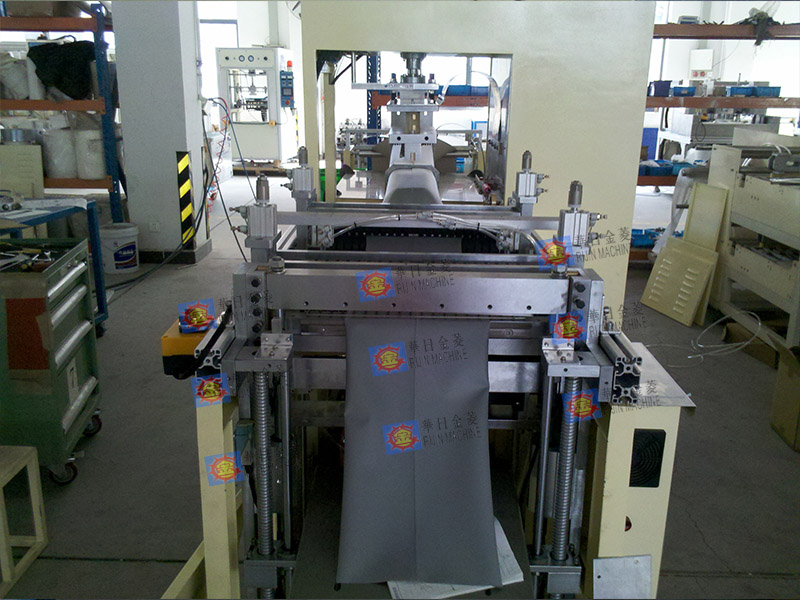

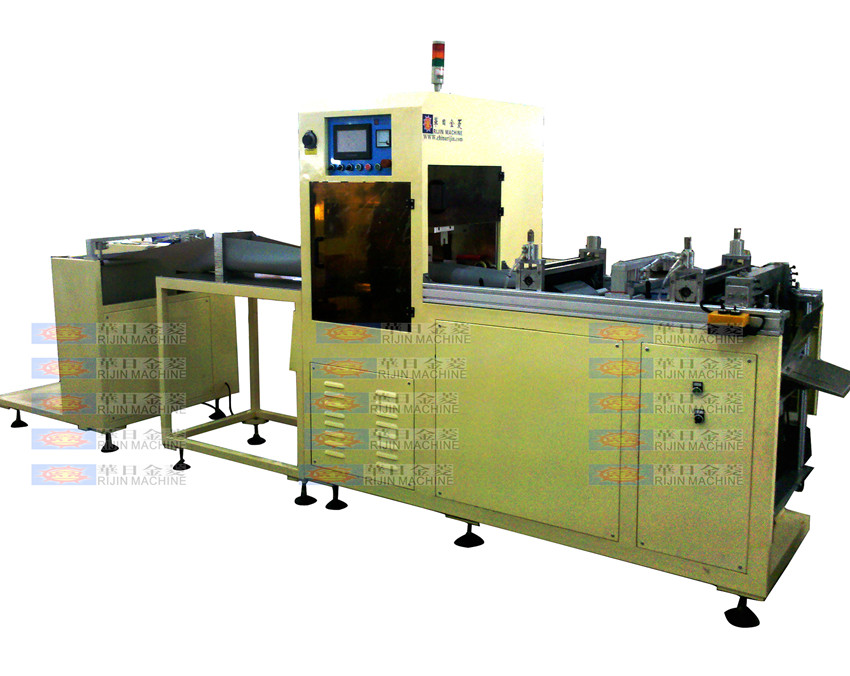

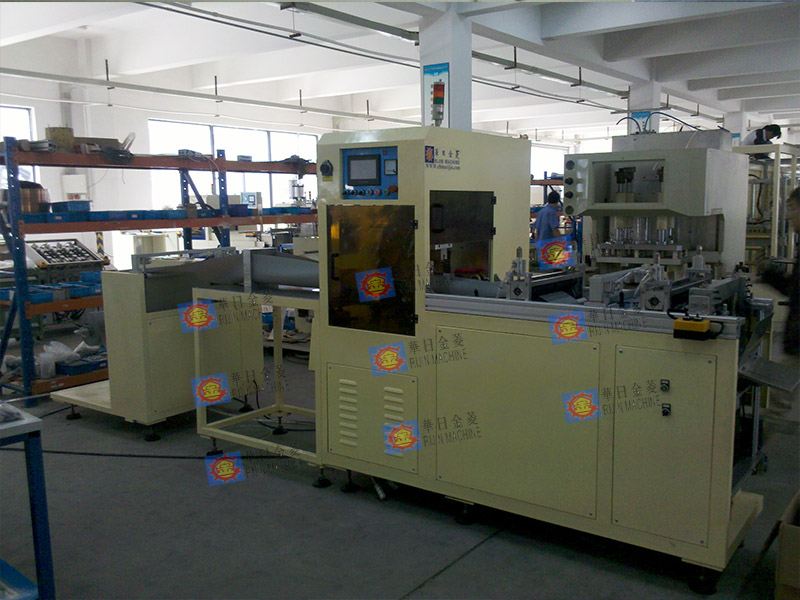

The machine structure:
1. Auto feeding, auto welding, auto cutting etc.And the cutting length can set according to products.
2.Gantry type design, machine stable.
3. High frequency/radio frequency welding system.
4. Mold water cycle system, make the high frequency electric plate temperature and mold temperature to keep at room temperature, to ensure that the product welding degree.
5. If short of material,it will alarm automatically.
6. PLC programming control system, touch screen interface,parameters can be set up by the touch screen, easy operation.
7. Alarm display, fault location, it's convenient for user fast troubleshooting.
8, production efficiency: 300 meters/hour.
|
Parameters
|
Model
|
RJ-HF8YT-2
|
|
H.F output
|
8KW
|
|
Input power
|
15KVA
|
|
Frequency
|
27.12MHZ
|
|
Voltage
|
50/60HZ AC380V 3P
|
|
Rectifier
|
Silicon
|
|
Electron tube
|
7T69RB
|
|
Spark system
|
NL-5557
|
|
Pressure way
|
Pneumatic
|
|
Air pressure
|
7kg/cm2
|
|
Max. pressure
|
200kg
|
|
Feeding way
|
Servo motor
|
|
Gap of electrode
|
150mm
|
|
Working trip
|
100mm
|
|
Upper board
|
350×60mm
|
|
Working plate
|
400×300mm
|
|
Capacity
|
300m/hour
|
|
CPU
|
PLC touch screen
|
|
Dimension
|
3800×1000×1700mm
|
|
Weight
|
800kg
|
|
