Product Name

Auto turntable high frequency blister packing machine with auto pick finsihed products
  • Efficiency
  • Accurate
  • Perfection
Machine description

Mainly used for all kinds of plastic suitable for PVC, PET, double blister or single blister  products packaging,welding and cutting;

Synthetic leather car inner decoration, visor, costumes, trademarks, strap, holster, CD bags, swim ring, raincoat, warm water bag, PVC inflatable pillow, air bed, air cushion, mobile pool, tent, canvas and other type of thick film or composite membrane fusion.
Main features:
1. Strong output,frequency generated by the 27.12 MHZ and 40.68 MHZ, in line with international industry standard, all kinds of special electronic circuit control device, can avoid improper operation, make working fast, and make the quality good.
2. High sensitive electronic spark protection device, when the spark occurs can be automatically cut off the circuit, machine damage is reduced, when the current is too high, automatic cut off  to protect oscillation tubes and rectifier.
3. Using shuttle table work alternately, location is accurate, flexible and working plate size can be customized as required;
4. The latest generation of high frequency design, low electromagnetic radiation, protect the personal safety, with the manual/auto, test, temperature control, pressure control, high frequency current regulation and other functions, takes less space, easy installation and maintenance;
5. The key parts adopt imported parts, machine quality guaranteed.
6. PLC operating system, the welding parameters such as welding time can be set up by PLC, 7 inch touch screen interface, display various parameters and output, speed, parameter adjustment, production within the micro computer screen set for production, when production to achieve automatic warning, convenient for user counting.
7. High frequency welding firm, has beautiful appearance.

Description:

Main Features: With automatic motor slipway pass in and out devices; 1-36 tons air pressure hydraulic pressure devices; NL-5557 spark sensitive circuit device; To finish in welding and cutting for one time, with accurate position; With smooth edge cutting of leather parts, paper cards and shrink plastic products;

Usage: It is suitable for welding and cutting of paper board and shrink plastic;vehicle pad, door board handle and sunshine board; shoe surface and shoe sole;label, watch belt and leather grove;

parameter:

Model

RJ-HF5SK

RJ-HF8SK

RJ-HF10SK

Power Output

5000W

8000W

10000W

Voltage

AC380V 3P

Input Power

9KVA

13KVA

18KVA

Rectifier

SILICON RECTIFIER

Oscillation

E3185

7T69RB

E3069

Anti-spark Tube

NL5557

Pressure Way

Hydraulic Press

Gap of Electrodes

150mm

Dimension of Upper Board

450×350

520×400

520×400

Dimension of Lower Board

600×400

700×450

700×450

Net Weight

1Ton

1.5 Ton

2 Ton

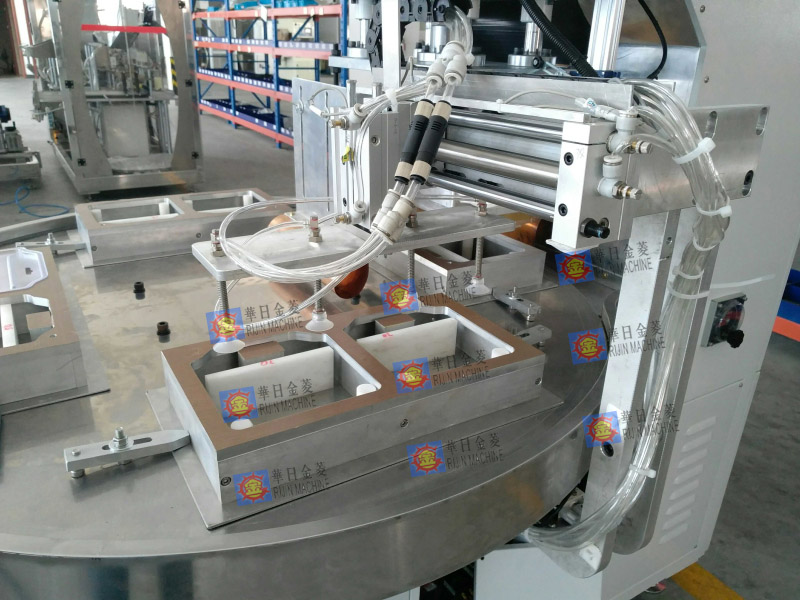

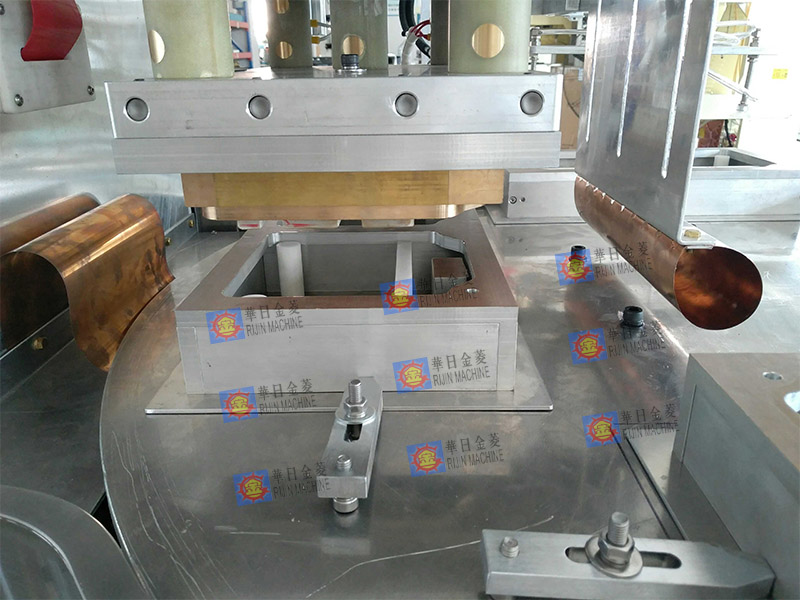

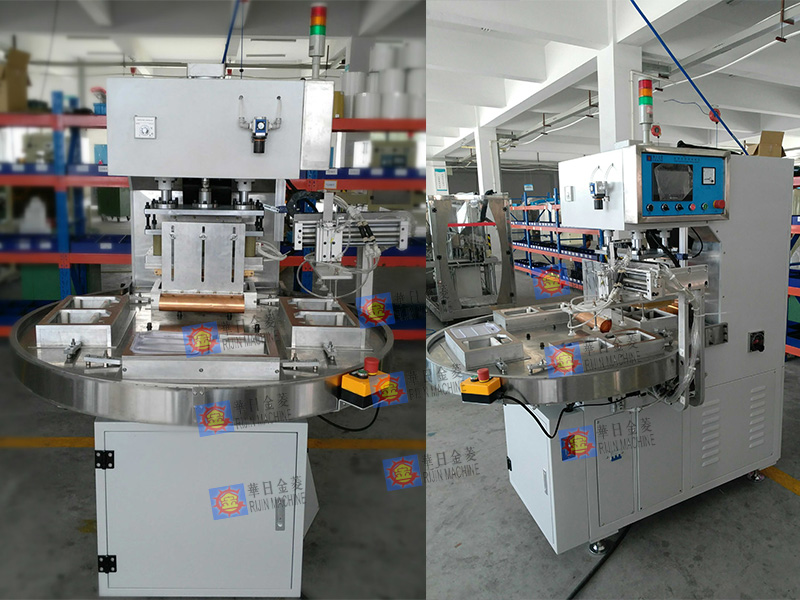

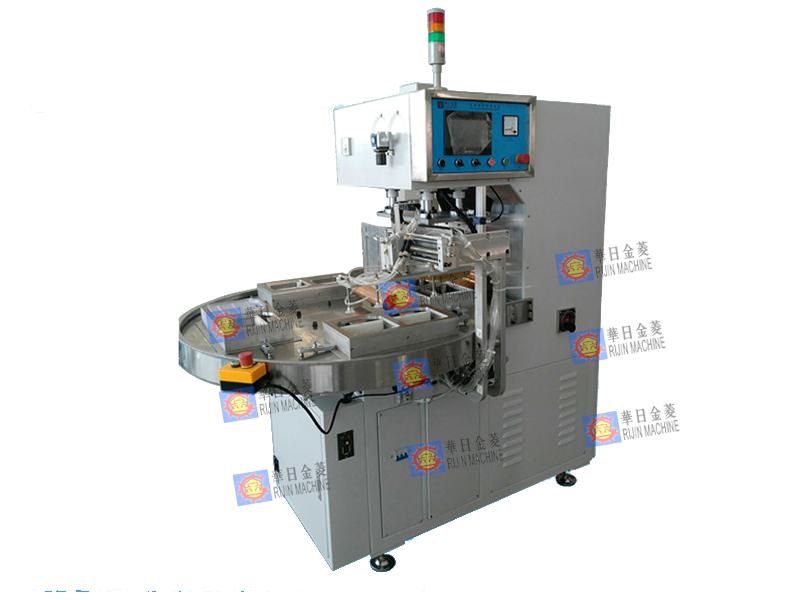

machine picture

sample display
