Product Name

High frequency blister packing machine
  • Efficiency
  • Accurate
  • Perfection
Machine description


Automatic Turntable H.F. Blister Packaging Machine , with 4 working stations
Application:
1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for blister packages,
and it is a multipurpose machine, it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW for multi-cavity production loads and specialized products.

Model

RJ-HF5SK RJ-HF8SK

H.F Power

5KW

8KW

Input Power

9KVA

15KVA

Frequency

27.12MHz

27.12MHz

Power Supply

50/60HZ   AC380V

50/60HZ   AC380V

Rectifier

Silicon Diode

Silicon Diode

Oscl.Tube

E3185

7T69RB

Sparking Tube

NL-5557

NL-5557

Pressure Way

Pneumatic

Pneumatic

Max. Pressure

200kg

200kg

Up & Low mould Dis.

150mm

150mm

Strok

150mm

150mm

Upper plate

300mm×400mm

300mm×400mm

Lower table

300mm×400mm

300mm×400mm

Turntable site

four site

four site

Feed material strok

Max.400mm

Max.400mm

Machine size

2800×2200×1800mm

2800×2200×1800mm

Weight

850KG

850KG

This machine is automatic turntable, it has 4 working position or 6 working position and you can choose manual put material and mechanical arm to put and get it.

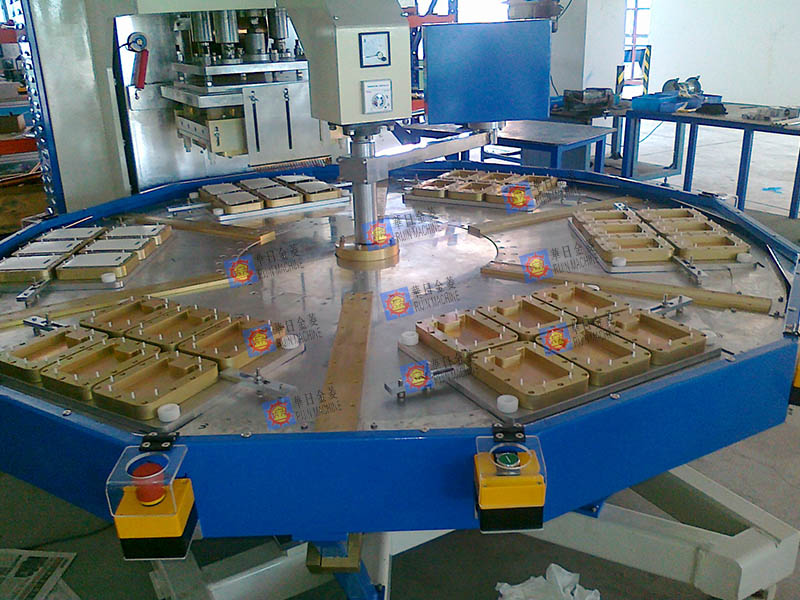

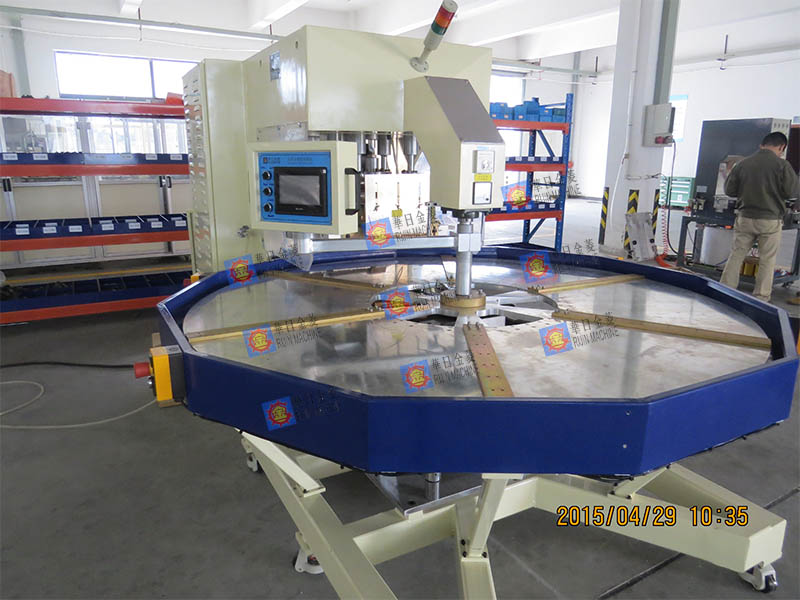

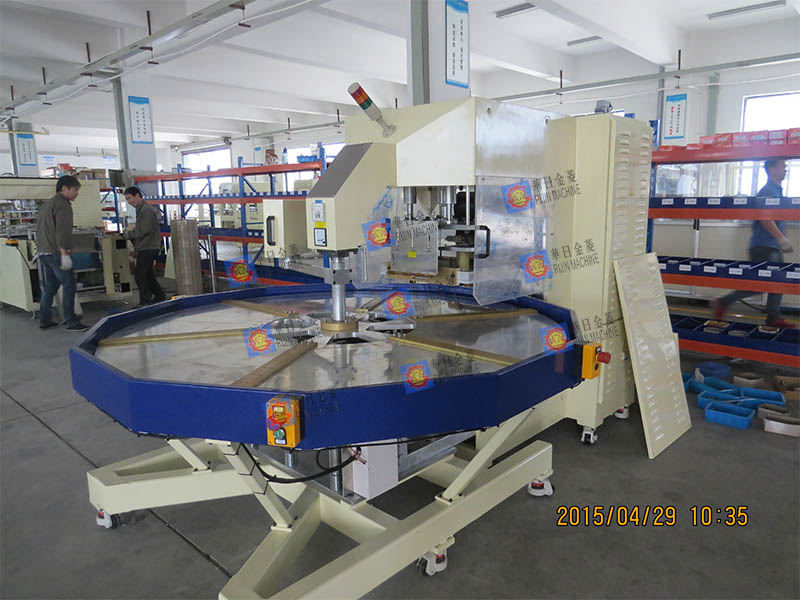

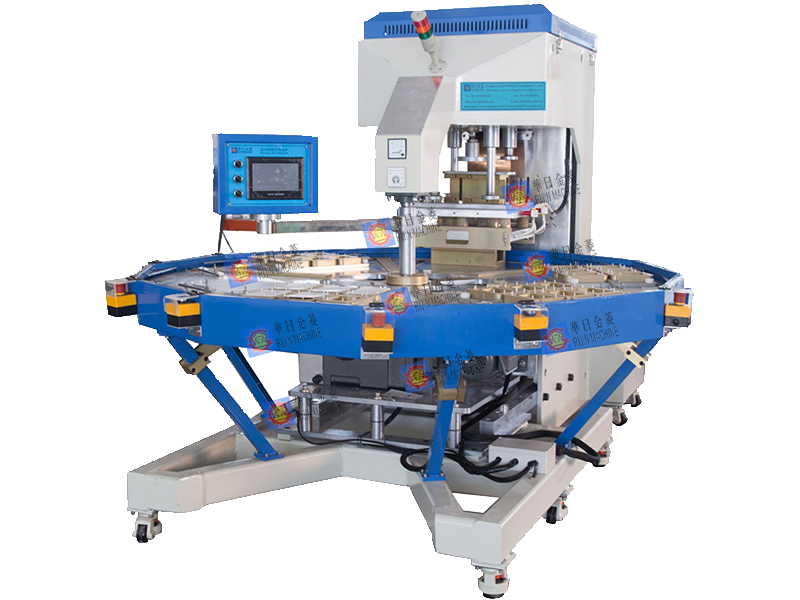

machine picture

sample display
