Product Name
Automatic rain coat high frequency welding machine
  • Efficiency
  • Accurate
  • Perfection
Machine description

Automatic high frequency rain coat welding machine

High frequency plastic welding machine
Mainly used for all kinds of plastic suitable for PVC, PET, double blister or single blister blister packaging products welding forming;PVC double blister sealing can trimming at the same time, but for PETG double blister packaging can weld can't cut off (low pressure).Synthetic leather car inner decoration, visor, costumes, trademarks, strap, holster, CD bags, swim ring, raincoat, warm water bag, PVC inflatable pillow, air bed, air cushion, mobile pool, tent canvas tents and other type of thick film or composite membrane fusion.
Main features:
1. Output power strong local oscillator frequency generated by the 27.12 MHZ and 40.68 MHZ, in line with international industry standard, all kinds of special electronic circuit control device, can avoid improper operation, and can the fastest time welding products, improve product yield.
2. High sensitive electronic fire protection device, when the spark occurs can be automatically cut off the circuit, high weeks the machine damage is reduced, and the object when the current is too high, automatic cut off the high pressure to protect oscillation tubes and rectifier.
3. Slide around work alternately, location is accurate, flexible and working mesa size can be customized as required;
4. The latest generation of high Zhou Boji shield type design, low electromagnetic radiation, protect the personal safety, with the hand/auto, test, temperature control, pressure control, high weeks current regulation and other functions, covers an area of less, easy installation and maintenance;
5. The key parts adopt imported machine quality guaranteed.
6. PLC operating system, the welding parameters such as time, melting time can be set up by PLC, 7 inch human-machine interface, display various parameters and output, speed, parameter adjustment, production within the micro computer screen set for production, when production to achieve automatic warning, convenient user count.
7. High frequency welding indentation effect and the material itself color, welding firm, beautiful appearance.




H.F output


Input power





50/60HZ   AC380V  3P


Silicon diode

Electron tube

8T85RB Toshiba

Anti-spark system

Electronic spark protect system

Pressure way


Gap of electrode


Working trip


Upper board


Working plate



PLC touch screen

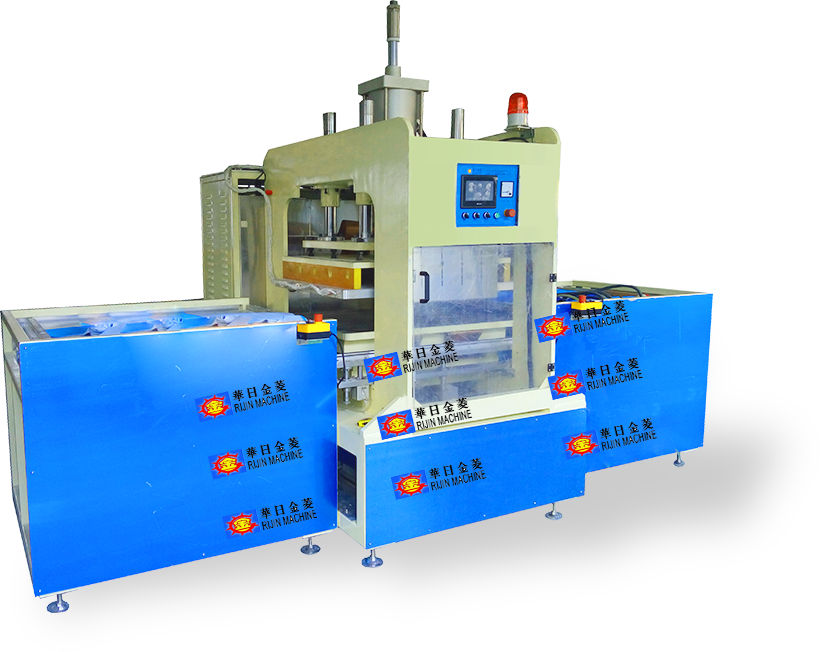

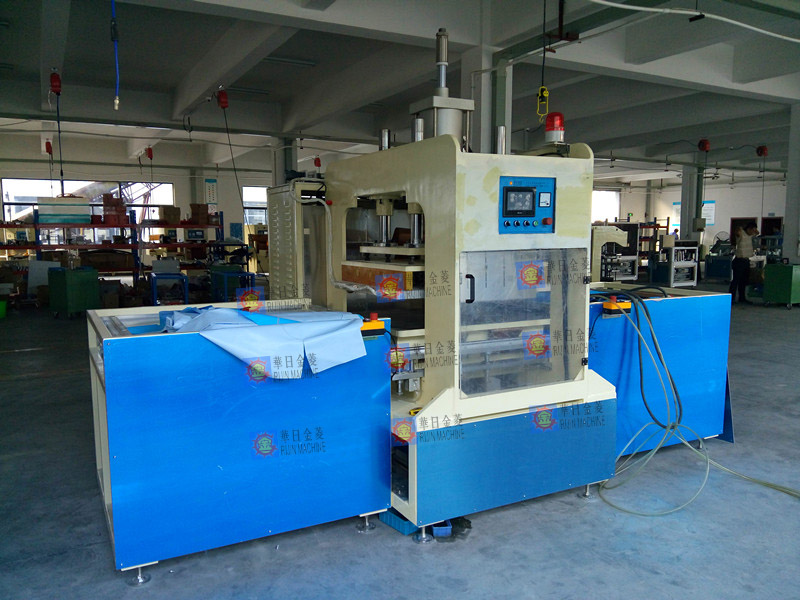

machine picture
sample display
